Technical Specifications
Capabilities at a Glance
| Tolerance | ±0.005mm on critical dimensions |
|---|---|
| Materials | Brass C360 for machinability · Copper C110 for conductivity · Beryllium copper for spring contacts · Stainless 303 for strength-critical hardware. |
| Process | 5-Axis Milling + Turning |
| Surface Finish | Bead Blasting · Passivation (available on request); plating (gold, nickel, silver, tin) arranged via our partners |
| Inspection | Zeiss CMM · Cpk ≥ 1.33 · Free FAI |
| Lead Time | Prototypes 5–7 business days; production 3–5 months. DDP door-to-door with one invoice. |
FAQ
Frequently Asked Questions
What connector parts can you machine?

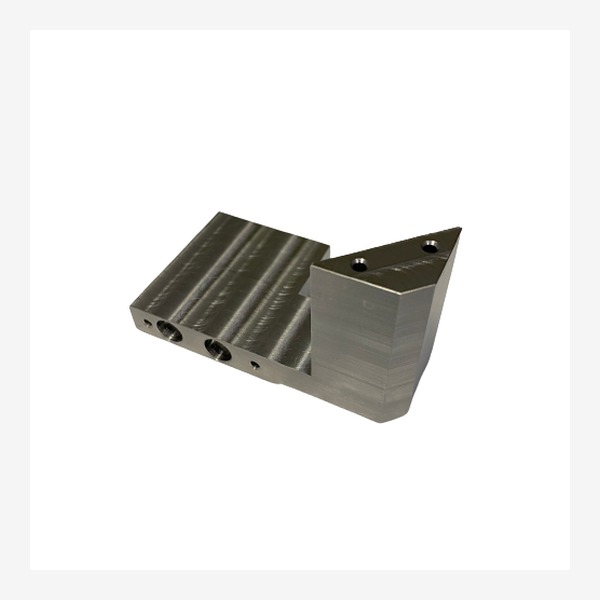

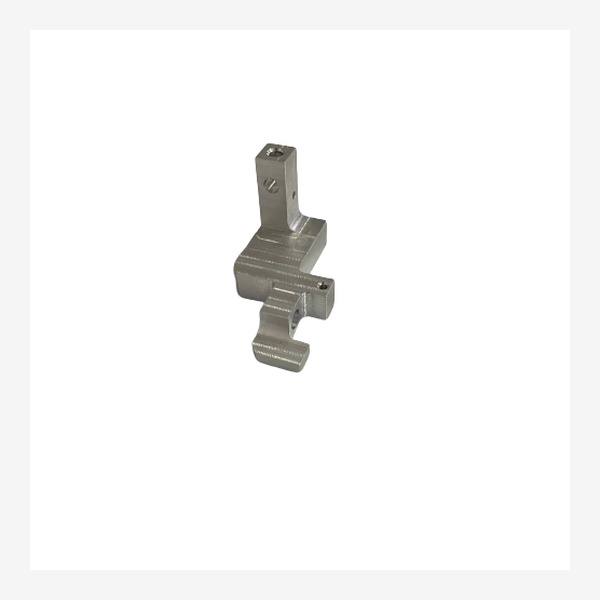

RF coaxial connector bodies, contact pins and sockets, interconnect housings, insulator supports and precision threaded connector parts from brass and copper alloys.
What materials do you recommend for RF and electrical parts?
Brass C360 for machinability, Copper C110 for conductivity, Beryllium copper for spring contacts, Stainless 303 for strength-critical hardware.
What tolerances do you hold on connector threads and mating features?
±0.005mm on critical dimensions with thread-form verification — connector threads, contact bores and alignment features are CMM-checked.
Can you apply plating to connector parts?
Yes — plating (gold, nickel, silver, tin) is arranged with our trusted partners; parts are machined to accept the specified plating thickness.
What is your lead time for connector prototypes?
3–5 months for production, prototypes in 5–7 business days. Fast track available on proven designs.
How do you ensure consistency in contact pin batches?
In-process inspection, CMM sampling and Cpk ≥ 1.33 on critical dimensions, with full reports included on every order.
Buyer Guide
Buyer's Guide
How to Request a Quote for Connector & Electronic Parts
Send the drawing with: material, conductivity or RF requirements, plating spec, quantity, and critical dimensions. Electrical function info helps us pick the right grade.
Material Selection Guide
Brass C360 for machined bodies, C110 copper for high-conductivity paths, beryllium copper for contacts requiring spring properties, stainless 303 for hardware. Plating spec completes the picture.
DFM Tips for Connector Machining
Specify thread and bore tolerances realistically, allow plating thickness in your finished dimensions, and avoid sharp internal edges that affect signal paths.
Quality & Inspection
CMM inspection with full report, thread-form verification, Cpk ≥ 1.33, free FAI. Batch consistency monitored across production lots.
Lead Time & Shipping
Prototypes 5–7 business days, production 3–5 months. DDP door-to-door with one invoice — export, customs, duties, last-mile.
Request a Quote for Connectors & Electronics
Send us your drawing — we review within 24h and return a quote with lead time.
