Technical Specifications
Capabilities at a Glance
| Tolerance | ±0.005mm on critical dimensions |
|---|---|
| Materials | Aluminum 6061/7075 for fixture plates · Tool steel for wear inserts · 4140 for clamp bodies · Stainless 303/304 for locators. |
| Process | 5-Axis CNC Milling |
| Surface Finish | Ra 0.8μm or better on locating and clamp surfaces · Edge deburring · Anodizing · Bead Blasting (available on request); hardening + grinding for high-cycle inserts arranged via our partners |
| Inspection | Zeiss CMM · Cpk ≥ 1.33 · Free FAI |
| Lead Time | Fast track 1–3 months; simple jig plates in 5–7 business days. DDP door-to-door with one invoice. |
FAQ
Frequently Asked Questions
What fixture parts can you machine?

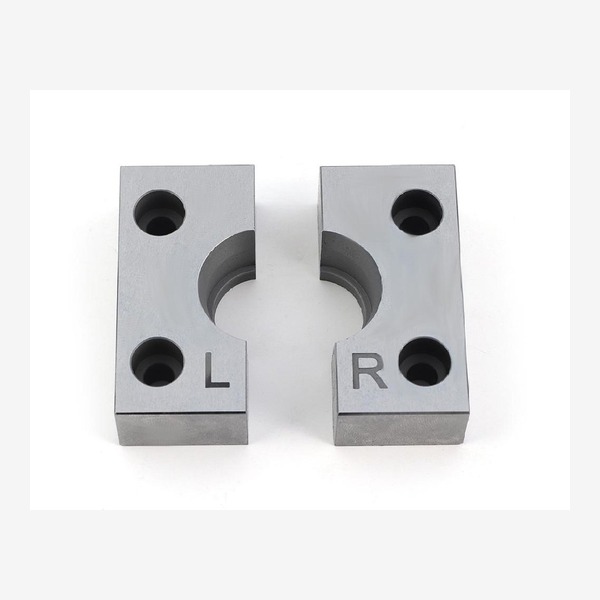

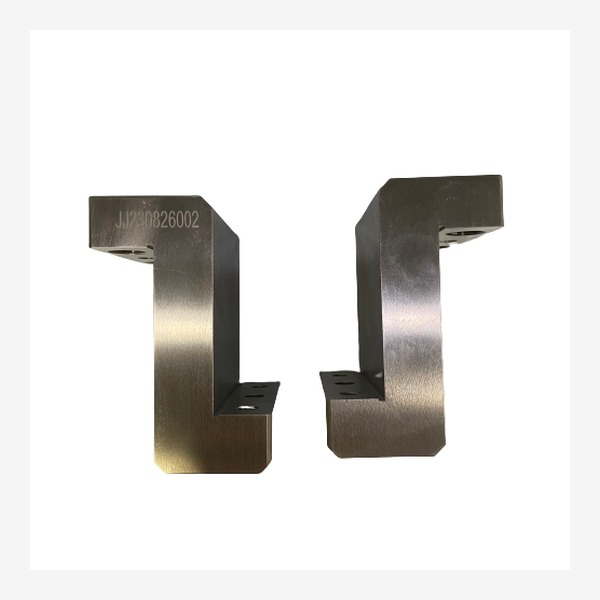

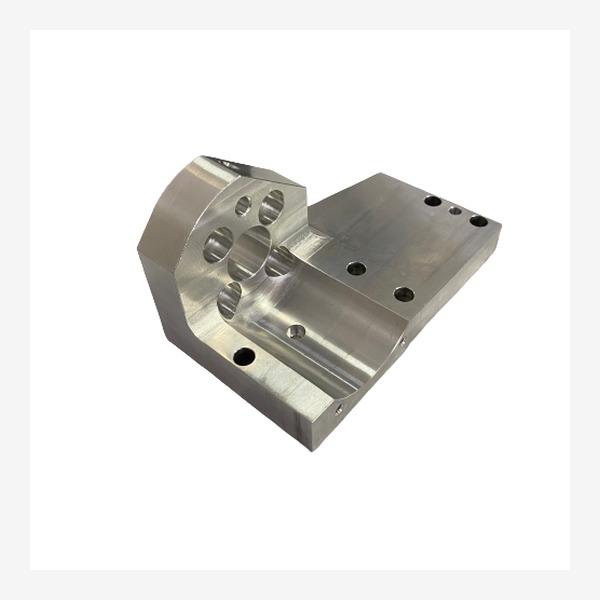

Jig plates, fixture bases, inserts, locators, clamp bases, locating pins and inspection fixtures — drilled, tapped, doweled and ground per your design.
What tolerances do you hold on locating and datum features?
±0.005mm on critical dimensions; hole patterns and dowel locations are CMM-verified with full reports.
Can you hold flatness on large fixture plates?
Yes. Flatness within 0.01mm per 300mm is standard for fixture plates, achieved with stress-relieved stock and controlled machining.
Can you harden and grind fixture inserts?
Yes. Tool steel inserts are heat-treated via our partners and precision ground for long-wearing, repeatable locating surfaces.
What surface finish do you machine on locating surfaces?
Ra 0.8μm or better on locating and clamp surfaces, with edge deburring for safe handling.
What is your lead time for fixture prototypes?
Fast track 1–3 months; simple jig plates can ship in 5–7 business days. Send the drawing for a confirmed schedule.
Buyer Guide
Buyer's Guide
How to Request a Quote for Fixtures & Tooling
Send the drawing with: base material, locating pin spec, dowel pattern, hardened insert requirements, and quantity. Datum structure matters for fixture accuracy.
Material Selection Guide
Aluminum 6061/7075 for fixture plates, tool steel for wear inserts, 4140 for clamp bodies, stainless 303/304 for locators. Hardening + grinding for high-cycle inserts.
DFM Tips for Fixture Design
Design dowel locations on a clear datum scheme, allow for clamping access, and specify hardened inserts only where wear is expected to control cost.
Quality & Inspection
Every fixture component CMM-inspected with full dimensional report, Cpk ≥ 1.33, free FAI. Datum verification included.
Lead Time & Shipping
Fast track 1–3 months, simple plates in days. DDP door-to-door with one invoice — export, customs, duties, last-mile.
Request a Quote for Automation Fixtures & Tooling
Send us your drawing — we review within 24h and return a quote with lead time.
Request A Quote →
